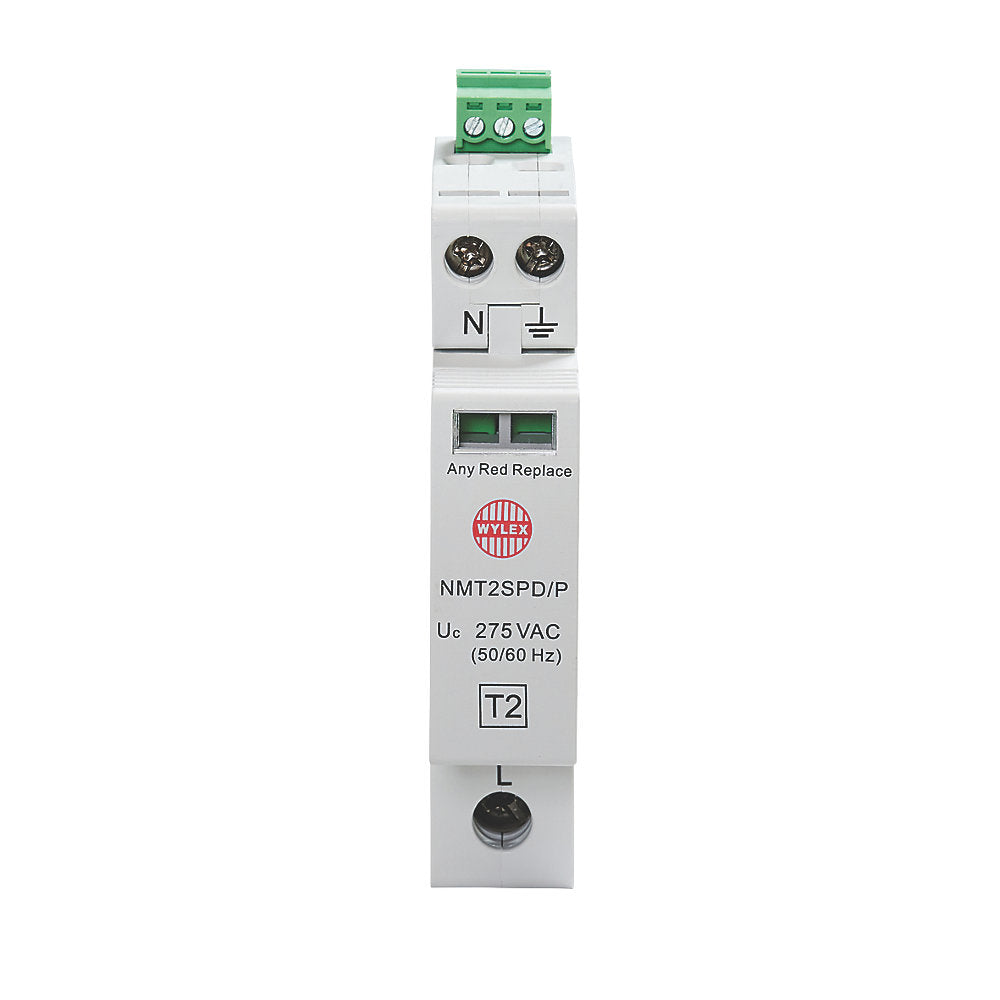

Description
For use with Wylex consumer units. Single module including all connections, fits in way 1 next to main switch. Features status indicators showing if the device has been activated and includes volt-free contacts for remote monitoring and signalling. Connects directly to busbar.
- DIN Rail Mounted Fitting
| SPECIFICATION | |
|---|---|
| Brand | Wylex |
| CSU Device | SPDs |
| Incomer Fitting Type | DIN Rail Mounted |
| Manufacturer Guarantee | 1 Year Guarantee |
| Max. Continuous Voltage (Uc) | 275 V |
| Max. Discharge Current (Imax) | 40 kA |
| Model No | NMT2SPD3W/1 |
| No. of Phases | Single-Phase |
| Nominal Discharge Current (In) | 20 kA |
| Number of Poles | Double Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Product Type | Miniature Surge Protection Device |
| SPD Type | Type 2 |
| Suitable Cable Size | 50 mm² |
